Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio. MSI VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.

Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touches the GPU baseplate to then spread heat along the full length of the heatsink. The heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

Its Triple Fan Thermal Design has enough room for three fans on a huge heatsink to ensure a cool and quiet experience. Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.

FEATURES:

• Boost Clock / 2565MHz
• Memory Speed / 18Gbps
• 8GB GDDR6
• DisplayPort x 3 / HDMI x 1
• Triple Fan Thermal Design
• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Airflow Control_ Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
• Core Pipe_ Precision-crafted heat pipes ensure max contact with the GPU and spread heat along the full length of the heatsink.
• Zero Frozr_ The fans completely stop when temperatures are relatively low, eliminating all noise.

SPECIFICATIONS:

• Graphics Processing Unit_ NVIDIA® GeForce RTX™ 4060 Ti
• Interface: PCI Express® Gen 4 x16 (uses x8)
• Core Clocks_ Extreme Performance_ 2580 MHz (MSI Center), Boost_ 2565 MHz (Gaming and Silent Mode)
• CUDA® Cores_ 4352 Units
• Memory Speed_ 18Gbps
• Memory: 8GB GDDR6
• Memory Bus_ 128-bit

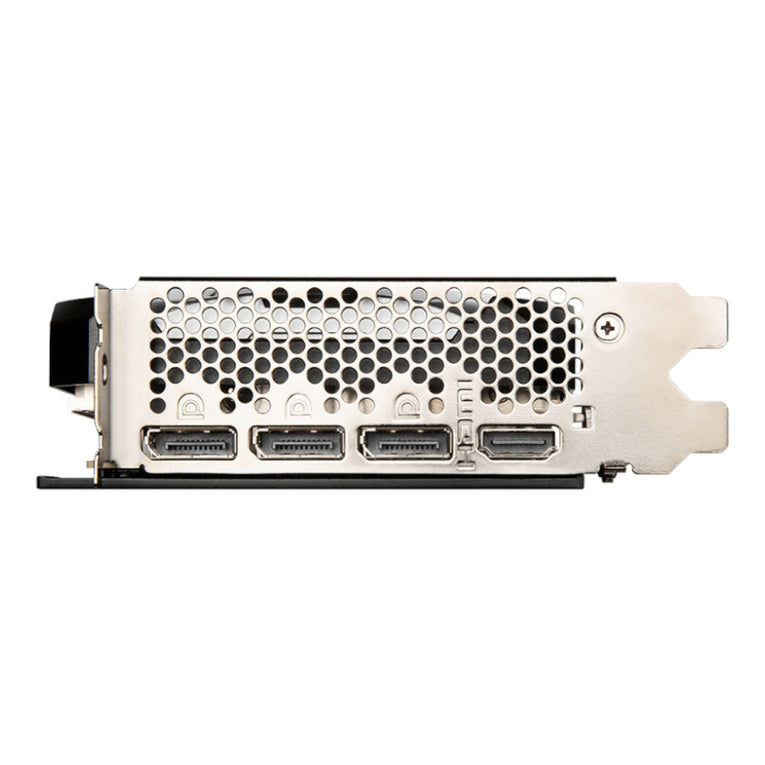

• Output: DisplayPort x 3 (v1.4a), HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
• HDCP Support_ Yes
• Power Consumption_ 160W
• Power Connections_ 8-pin x1
• Recommended PSU_ 550W
• DirectX Version Support_ 12 Ultimate
• OpenGL Version Support_ 4.6
• Maximum Displays_ 4
• G-Sync® Technology_ Yes
• Digital Maximum Resolution_ 7680 x 4320
• Product Dimensions_ 30.8 x 12 x 4.3 cm
• Product Weight_ 713g

WHAT'S IN THE BOX_

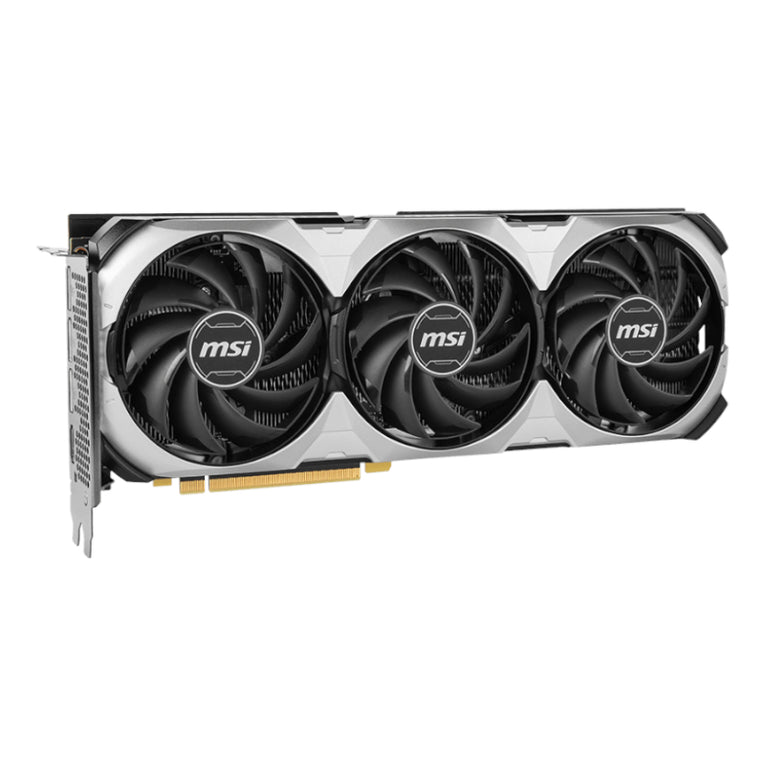

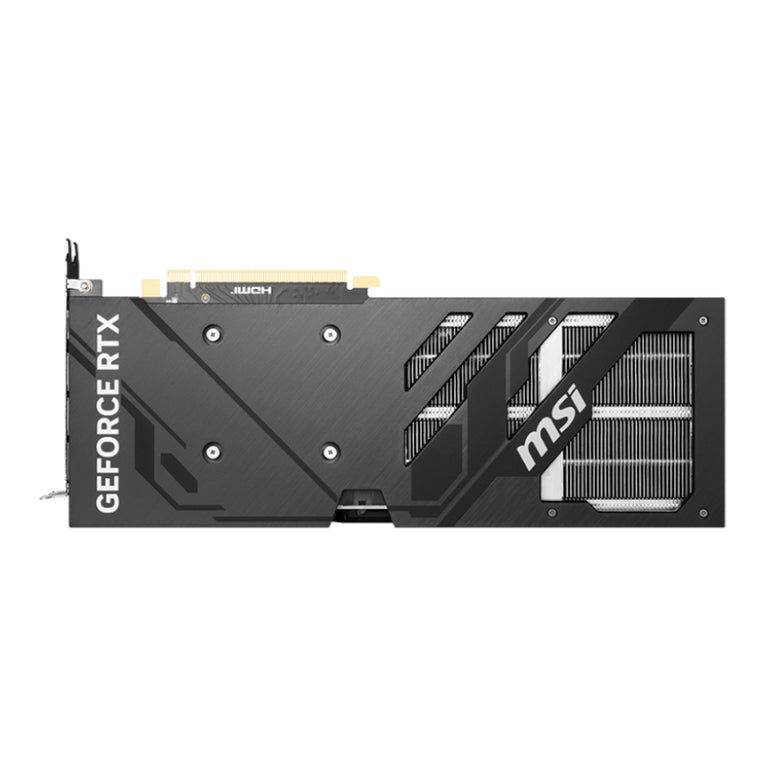

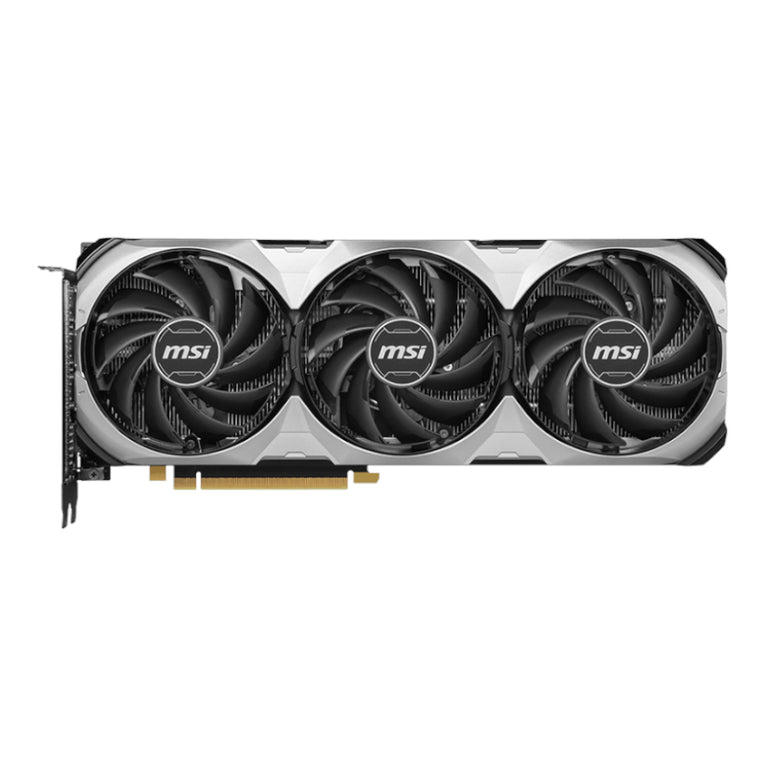

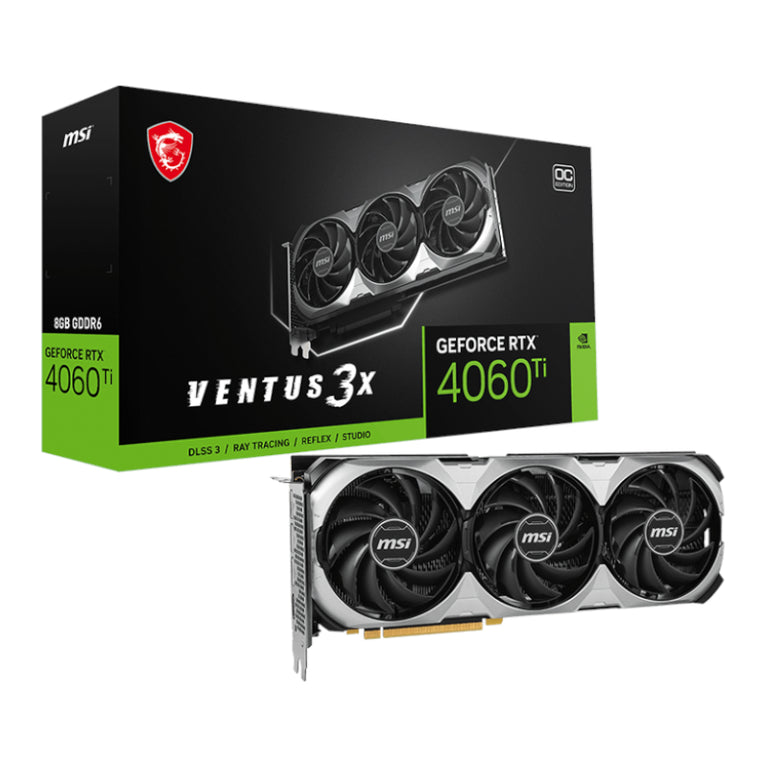

• MSI GeForce RTX 4060 Ti VENTUS 3X 8GB OC Graphics Card - Silver x1
