Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio. MSI envisioned the GAMING series as the favoured graphics card solution for all sorts of gamers, including adventure seekers, eSports competitors, live stream broadcasters, and more.

MSI GAMING reflects both the spirit of gamers and the intense performance within the cards with a styled exterior that erupts with colourful lights between bold lines and edges. Play with style! GAMING is upgraded with TRI FROZR 9 to sustain intense performance during gaming and content creation. A high-speed style matches high-performance capabilities for gamers who want to go all out. MSI envisioned the GAMING series as the favoured graphic card solution for all sorts of gamers, including adventure seekers, eSport competitors, live stream broadcasters, and more.

Stay cool and quiet. MSI’s TRI FROZR 9 thermal design enhances heat dissipation all around the graphics card. TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan. A fan cowl extends a bit beyond the general enclosure to lengthen the wind’s passageway, allowing airflow to stabilize and move smoother through the fans.

The heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency. Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touches the GPU baseplate and spread the heat along the full length of the heatsink. Airflow Control improves airflow dynamics through Wave Curved 2.0 and updated deflectors for optimizing the balance between cooling and quieter acoustics.

FEATURES:

• Boost Clock / 2640MHz
• Memory Speed / 18Gbps
• 8GB GDDR6
• DisplayPort x 3 / HDMI x 1
• Triple Fan TRI FROZR 9 Thermal Design
• TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
• Copper Baseplate_ Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
• Core Pipe_ A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
• Airflow Control_ Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

SPECIFICATIONS:

• Graphics Processing Unit_ NVIDIA® GeForce RTX™ 4060 Ti
• Interface: PCI Express® Gen 4 x16 (uses x8)
• Core Clocks_ Extreme Performance_ 2685 MHz (MSI Center), Boost_ 2670 MHz
• CUDA® Cores_ 4352 Units
• Memory Speed_ 18Gbps
• Memory: 8GB GDDR6
• Memory Bus_ 128-bit

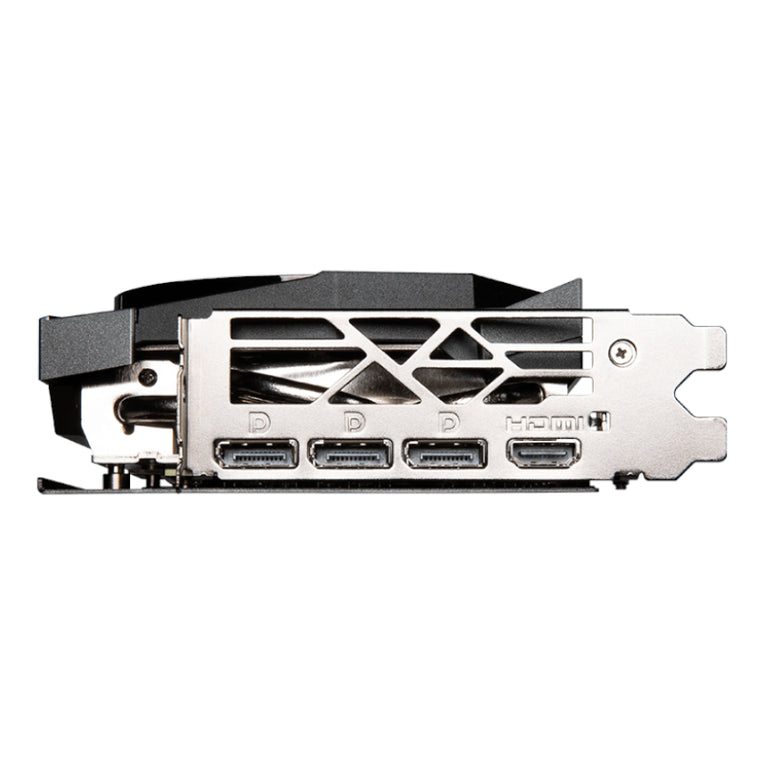

• Output: DisplayPort x 3 (v1.4a), HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
• HDCP Support_ Yes
• Power Consumption_ 160W
• Power Connections_ 8-pin x1
• Recommended PSU_ 550W
• DirectX Version Support_ 12 Ultimate
• OpenGL Version Support_ 4.6
• Maximum Displays_ 4
• G-Sync® Technology_ Yes
• Digital Maximum Resolution_ 7680 x 4320
• Product Dimensions_ 33.8 x 14.1 x 5.2 cm
• Product Weight_ 1167g

WHAT’S IN THE BOX_

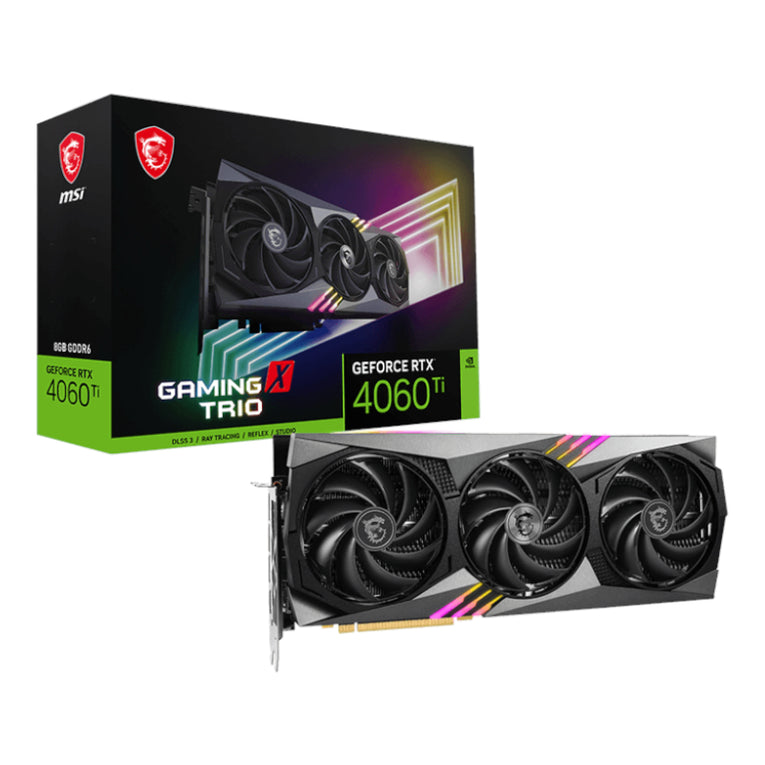

• MSI GeForce RTX 4060 Ti GAMING X TRIO 8GB Graphics Card x1
