MSI MPG X670E CARBON WIFI AMD AM5 ATX Gaming Motherboard
- Regular price
- R 13,200.00
- Regular price
- R 13,200.00
-
- Sale price
- Unit price
- per
Share
The MSI MPG X670E CARBON WIFI lets you take a huge step forward in DDR performance enhancement with the latest DDR5 memory. Combining a dedicated SMT welding process and MSI Memory Boost technology, the MPG X670E CARBON WIFI is ready to deliver world-class memory performance.
The MSI MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Unleash and sustain the maximum performance with a premium VRM design built with a total of 18+2+1 Duet Rail Power System(DRPS). Combining dual power connectors and Power Stage, MPG X670E CARBON WIFI is ready for the challenge of high-end processors.
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. The patented design allows you to set your M.2 and Shield Frozr without the annoying screws, providing the easiest way for M.2 installation.
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up 4 temperature targets, which will adjust the fan speeds automatically. Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
The MSI MPG X670E CARBON WIFI employs a carbon black colour scheme and RGB lighting to show off different personalities and identities. Splash on some colour and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colours and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
FEATURES:
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6600+MHz (OC)
- Enhanced Power Design_ 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution_ Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr
- High Quality PCB_ 8-layer PCB made by 2oz thickened copper and server grade level material
- DIY Friendly Design_ Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
- Lightning Fast Game experience_ PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- 2.5G LAN and Wi-Fi 6E Solution_ Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Mystic Light_ 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
- Audio Boost_ Reward your ears with studio grade sound quality for the most immersive gaming experience
SPECIFICATIONS:
- Socket: AM5
- CPU (Max Support): AMD Ryzen™ 7000 Series up to Ryzen 9
- Chipset: AMD X670
- DDR5 Memory_ DDR5 6600+(OC)/6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Max. overclocking frequency_ 1DPC 1R Max speed up to 6600+ MHz, 1DPC 2R Max speed up to 6000+ MHz, 2DPC 1R Max speed up to 6400+ MHz, 2DPC 2R Max speed up to 4000+ MHz
- Memory Channel_ Dual Channel DDR5
- DIMM Slots_ 4
- Max Memory (GB): 128
- PCI-E x16_ 3 (2 x PCIe 5.0 and 1 x PCIe 4.0)
- SATAIII: 6
- M.2 Slot_ 4
- RAID: 0/1/10
- LAN: 1x Realtek® RTL8125BG 2.5Gbps LAN
- Wi-Fi and Bluetooth_ Intel® Wi-Fi 6E module

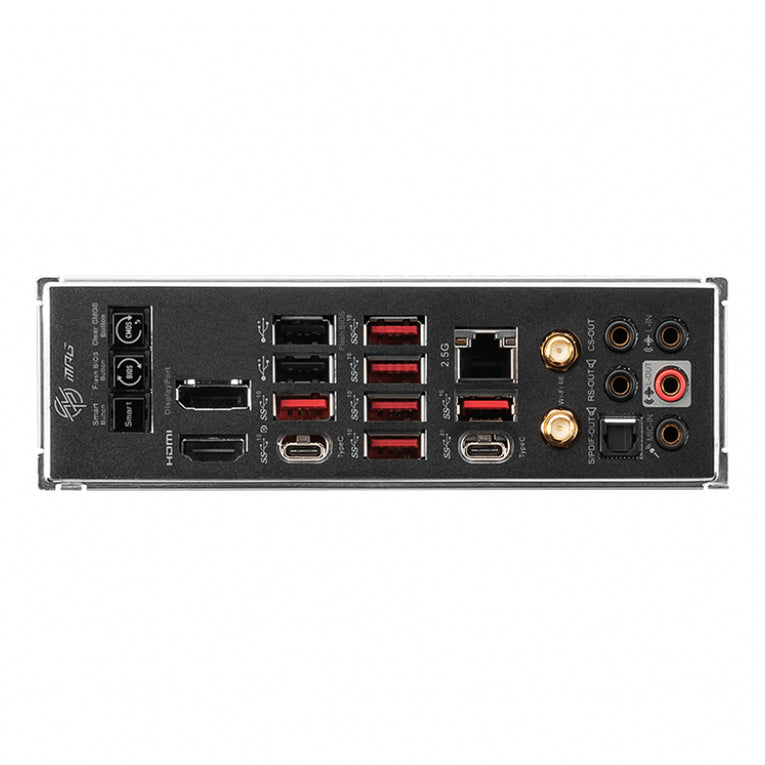

- USB 3.2 ports (Front): 1(Gen 2, Type-C), 4(Gen 1, Type A)
- USB 3.2 ports (Rear): 1(Gen 2×2, Type-C), 1(Gen 2, Type-C), 6(Gen 2, Type A)
- USB 2.0 ports (Front): 4
- USB 2.0 ports (Rear): 2
- Audio ports (Rear): 7.1 Channel HD Audio (Realtek® ALC4080 Codec)
- Type-C Display Port_ 1
- DisplayPort: 1
- HDMI: 1
- DirectX: 12
- Form Factor_ ATX
- Operating System_ Support for Windows® 11 64-bit and Windows® 10 64-bit
WHAT'S IN THE BOX_
- MSI MPG X670E CARBON WIFI AMD AM5 ATX Motherboard – Black x1
- Wi-Fi Antenna x1
- SATA cables x2
- EZ M.2 Clip x3
- USB Drive x1
- 1 to 2 RGB LED Extension Y Cable x1
- Rainbow RGB LED Extension Cable x1
- Quick Install Guide x1
