The MEG X670E ACE furnished premium aesthetics with its dark black finish and gold embellish to bring you a premium quality motherboard of the highest standards. Developed to unlock the full gaming potential of the AMD X670 chipset by combining elite hardware system support and premium durability, the MEG X670E ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking memory, processor, and graphic card at the highest level.

The MEG series is revealed as a legend that represents the ultimate elegance in gaming. With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be. A huge step in DDR performance enhancement with the latest DDR5 memory. Combines with a dedicated SMT welding process and MSI Memory Boost technology, MEG X670E ACE is ready to deliver world-class memory performance.

MSI MEG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. Featuring the Lightning USB 3.2 Gen2x2 controller, offering USB speeds up to 20Gb/s transmission speed, 4x faster than USB 3.2 Gen1 when connecting via the rear SUB Type-C port. Splash on some colour and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colours and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.

FEATURES:

• Supports AMD Ryzen™ 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 6666+MHz (OC)
• Extreme Power Design_ 22+2+1 phases power design with 90A Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
• Maximum 6 x M.2 Connectors_ Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance.
• The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Outstanding Cooling Solution_ Stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads
• 10G Super LAN with latest Wi-Fi 6E solution_ Onboard 10Gbps LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
• Lightning Fast Game experience_ PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery.
• DIY Friendly Design_ Patent Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
• 8 Layer PCB with 2oz Thickened Copper_ Provides higher performance and long-lasting system stability without any compromise.
• Audio Boost 5 HD_ Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience

SPECIFICATIONS:

• Socket: AM5
• CPU (Max Support): AMD Ryzen™ 7000 Series up to Ryzen 9
• Chipset: AMD X670
• DDR5 Memory_ DDR5 6666+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• Max. overclocking frequency_ 1DPC 1R Max speed up to 6666+ MHz, 1DPC 2R Max speed up to 6000+ MHz, 2DPC 1R Max speed up to 6400+ MHz, 2DPC 2R Max speed up to 4000+ MHz
• Memory Channel_ Dual Channel DDR5
• DIMM Slots_ 4
• Max Memory (GB): 128
• PCI-E x16_ 3 / PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) / PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) / PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)
• SATAIII: 6
• M.2 Slot_ 4
• RAID: 0/1/10
• LAN: 1x Marvell® AQC113CS-B1-C 10Gbps LAN
• Wi-Fi and Bluetooth_ Intel® Wi-Fi 6E module
• USB 3.2 ports (Front): 1(Gen 2×2, Type-C), 1(Gen 2, Type-C), 4(Gen 1, Type A)

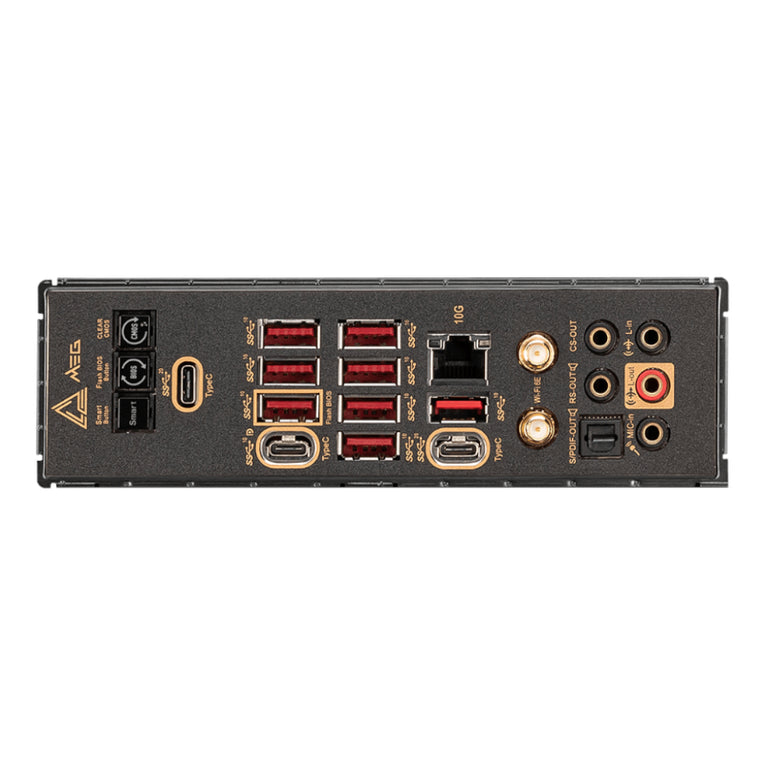

• USB 3.2 ports (Rear): 2(Gen 2×2, Type-C), 1(Gen 2, Type-C), 8(Gen 2, Type A)
• USB 2.0 ports (Front): 4
• Audio ports (Rear): 7.1 Channel HD Audio (Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA)
• Type-C Display Port_ 1
• DirectX: 12
• Form Factor_ E-ATX
• Operating System_ Support for Windows® 11 64-bit and Windows® 10 64-bit

WHAT’S IN THE BOX_

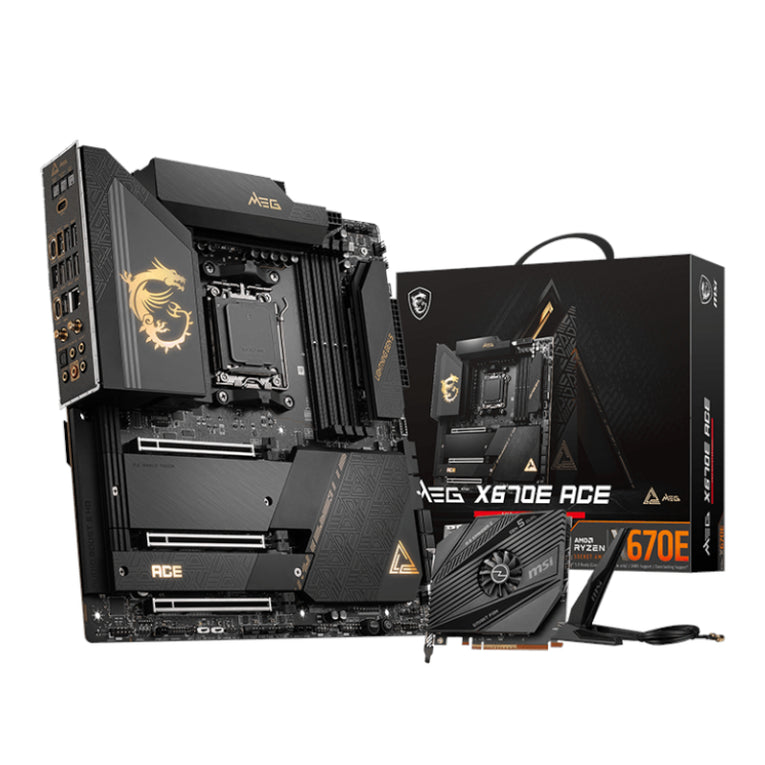

• MSI MEG X670E ACE AMD AM5 E-ATX Motherboard – Black x1
• M.2 Xpander-Z Gen5 Dual x1
• Wi-Fi Antenna x1
• SATA cables x4
• EZ M.2 Clip x3
• USB Drive x1
• 1 to 2 RGB LED Extension Y Cable x1
• Rainbow RGB LED Extension Cable x1
• Thermistor Cables x2
• EZ Front Panel Cable x1
• Quick Install Guide x1
