The MSI MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers.

The newly introduced MAG CORELIQUID Series has everything you’re looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID Series is designed with the end goal in mind_ to provide effective cooling without any compromise.

The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source. A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop. Constructed with three layers of netted plastic tubing and a reinforced mesh exterior. Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

FEATURES:

• Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
• The pump has been integrated into the radiator for sound dampening and noise reduction
• Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
• A split liquid pathway through the radiator rapidly dissipates heat. The cooled liquid is then pumped back into the loop
• Intel and AMD CPU Compatible
• LGA1700 socket support
• AMD socket AM5 support

SPECIFICATIONS:

• Number of Fans_ 3
• Fan Dimensions_ 12 x 12 x 2.5 cm
• Fan Speed_ 500 ~ 2000 RPM
• Fan Power Consumption_ 1.8 W
• Fan Rated Current_ 0.15 A
• Fan Rated Voltage_ 12V DC
• Fan Bearing_ Two Ball Bearing
• Fan Air Pressure_ 0.23 ~ 2.39 mm H2O
• Fan Noise Level_ 14.3 ~ 34.3 dBA
• Fan Air Flow_ 21.63 ~ 78.73 CFM
• Fan Lighting_ ARGB
• Fan ARGB Cable Connector_ Pin + Socket
• PWM Mode_ Yes
• Fan Cable Length (5V ARGB / PWM cable): 55 / 35 cm
• Radiator Material_ Aluminum
• Radiator Dimensions_ 39.4 x 12 x 2.7 cm
• Radiator Water Cooling Pipe Length_ 40 cm
• Block Dimensions_ 8 x 6.6 x 4.8 cm
• Block Lighting_ ARGB
• Block ARGB 5V Cable Length_ 40 cm
• Block ARGB Cable Connector_ Pin + Socket
• Pump Load Current_ 0.34 A
• Pump Rated Voltage_ 12V DC
• Pump Speed_ 4200 RP
• Pump Power Consumption_ 4.08W
• Intel Socket_ LGA 1150/1151/1155/1156/1200/1366/2011/2011-3/2066/1700
• AMD Socket_ AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2/SocketTR4/sTRX4/SP3

WHAT’S IN THE BOX_

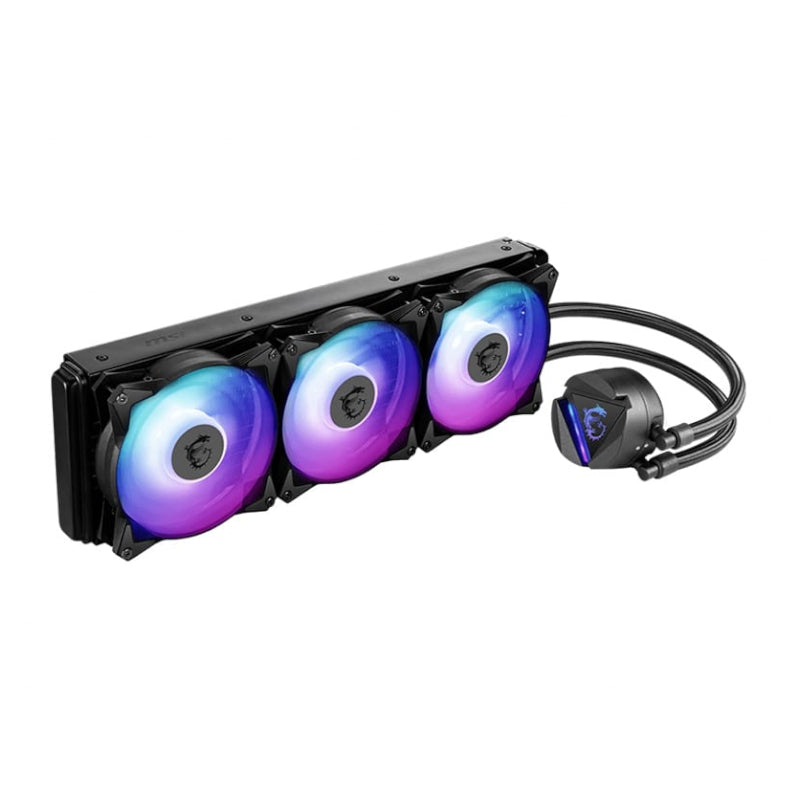

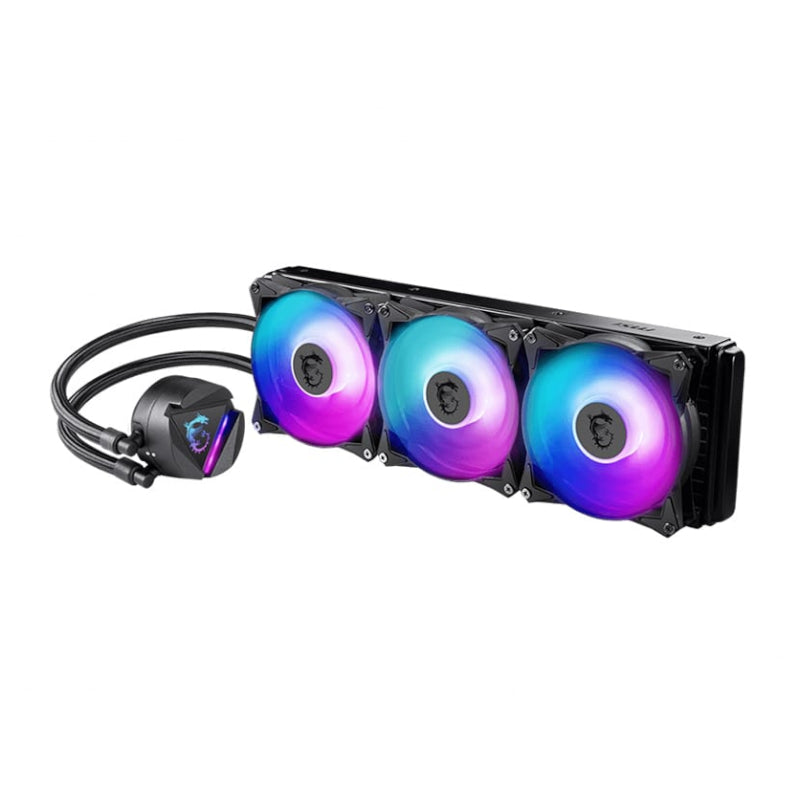

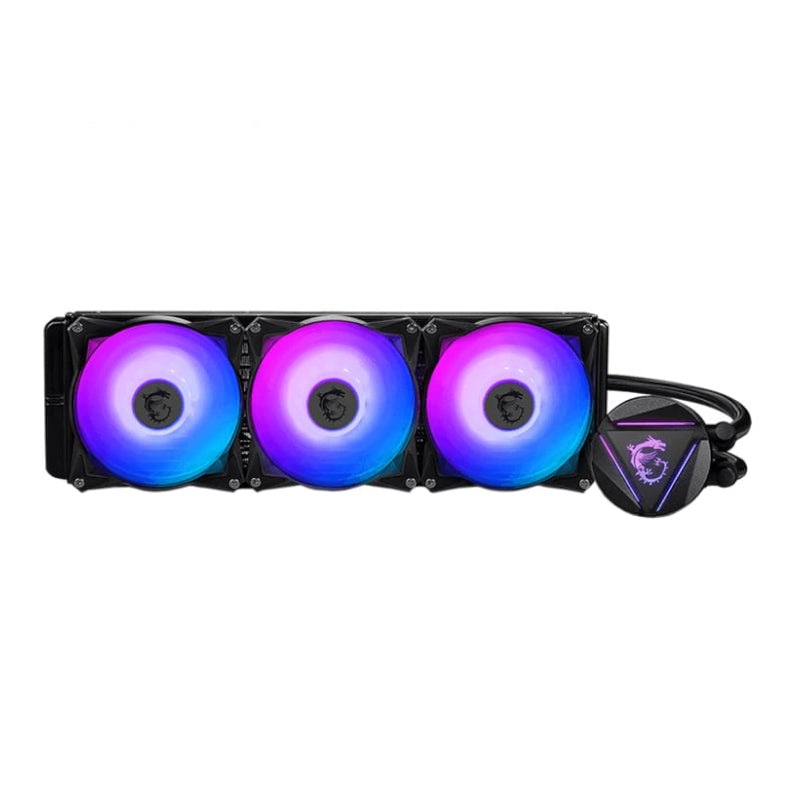

• MSI MAG Coreliquid 360R V2 ARGB AIO Liquid CPU Cooler – Black x1
• 1 to 3 Fan PWM cable x1
• PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x1
• Noise Reducer Cable x1
• Quick Installation Guide x1
